Titanium Flanged Nylon Nuts
€4.50 - €13.74
Safe & Secure Shopping
Check Shipping Rates & Times

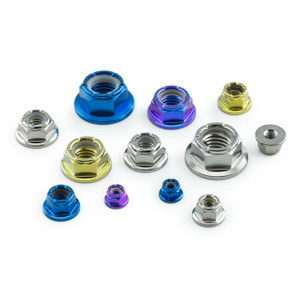

Titanium Flanged Nut.
The integral washer base or flange on the nut serves to distribute the pressure of the nut over the part being secured. This reduces the chance of damage and the risk of loosening as a result of an uneven fastening surface without the need for a separate washer. Manufactured from high-grade Titanium which has many benefits including a 45% weight saving compared to steel equivalents, excellent corrosion resistance, strength, and durability.
Διατίθεται σε 5 επιλογές χρωμάτων για να προσαρμόσετε και να κάνετε το έργο σας μοναδικό.
Διάμετρος νήματος | Βήμα νήματος | Μέγεθος υποδοχής | Εξωτερική διάμετρος | ύψος | Βάρος |
---|
M3 | 0.50mm | 6mm | 7.5mm | 3.5mm | 0.42g |
M4 | 0.70mm | 7mm | 10mm | 4.7mm | 0.78g |
M5 | 0.80mm | 8mm | 10mm | 5mm | 1.28g |
M6 | 1.00mm | 10mm | 14.2mm | 7mm | 2.12g |
M8 | 1.25mm | 12mm | 16mm | 8.5mm | 3.36g |
M10 | 1.25mm | 14mm | 20mm | 10.2mm | 5.26g |
