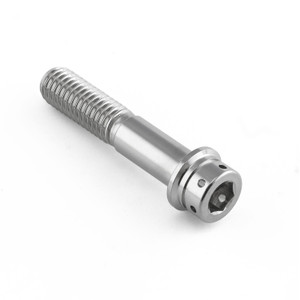

Titanium Flanged Socket Cap Bolt M8x(1.25mm)x40mm Race Spec (TIPBFLR840)

Pro-Bolt M8 Titanium Flanged Socket Cap Race Spec Bolts.

Purpose-built for racing and performance engineering, Pro-Bolt’s Titanium Flanged Socket Cap Bolts combine precise functionality with outstanding durability and weight savings — ideal for caliper mounts, pad pins, and sprocket applications.

Expertly crafted from Aerospace Grade Titanium (Grade 5: 6AL-4V), these bolts are 45% lighter than steel equivalents, delivering unmatched strength-to-weight ratio and superior corrosion resistance.

Key Features:

• Pre-Drilled Head – Allows for lock wiring to secure the bolt in place, preventing loosening due to vibration or movement in critical applications.
• Integral Flanged Head – Acts as a built-in washer to evenly distribute load, perfect for recess fitments with compact external diameter.
• Forged Construction & Rolled Threads – Offers superior mechanical strength and reduces the risk of galling under high stress.
• DLC Black Titanium Coating – Diamond-Like Carbon coating enhances durability, reduces friction, and extends service life.
• Anodised Finishes Available – Offered in Blue, Gold, and Purple Haze. (Please note: Titanium anodised finishes differ from our Aluminium range).

υλικός:

Τιτάνιο Βαθμού 5

Τύπος προϊόντος:

σύρτης

Στυλ κεφαλής:

Φτενισμένο καπάκι

Βήμα νημάτων:

1.25mm

Ποσότητα συσκευασίας:

1

Pre-Drilled:

Ναι

Διάμετρος νημάτων:

8.00mm

Μήκος νήματος:

21.00mm

Μήκος κνήμης:

19.00mm

Ύψος κεφαλιού:

7.90mm

Διάμετρος κεφαλιού:

12.80mm

μήκος:

40.00mm

Μέγεθος κλειδιού Allen:

6.00mm

Βάρος προϊόντος:

10.27g
